Skidsteer

Heavy-duty solid resilient tyres specially designed for skid steer loaders, offering superior traction, durability, and long service life in tough industrial and construction environments.
Skidsteer loader being a versatile equipment – compact, rigid, engine powered – shall be used with wide range of attachments that makes it to be a mini alternative to compact loader, excavator, tele-handler and other utility equipment. The equipment pose greater strain to the tyres as the turning operations do not have a separate steering mechanism but works by differential steering with pair of one side of tyres operated independently at different speeds.

The skidding or dragging of wheels across the ground generates high ground friction causing severe strain to the tyres. Emerald with its wide exposure in this segment offers customized products for varying applications that meets the price-performance expectations of the customers thus providing cost effective solutions.
Heavy-Duty Applications
Tyre

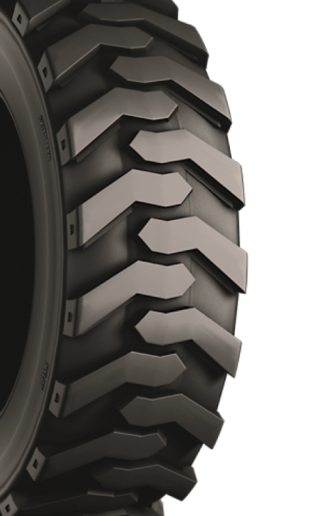

Skidsteer Tyres

Robust sidewalls

Helps protecting against damages

Puncture resistant

Abrasive resistant tread cuts damages

Reinforced carcass

Construction design for better load capacity

Rim guard protector

Helps avoid tyre-wheel damage

Industrial Pneumatic Tyres

Greckster IND01

Greckster IND04

Greckster SKT01 (R4)

Greckster SKT05 (L5)

Solid Resilient Tyres

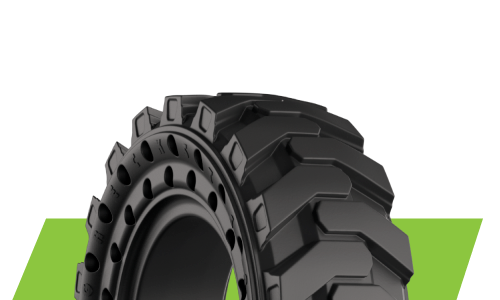

R4 with Aperture

R4 without Aperture

Slick

Technical Specifications

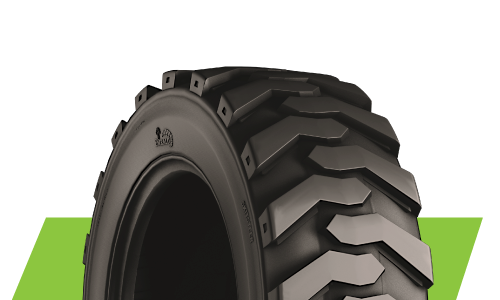

IPT – Greckster SKT01 (R4)

Size Type Rim (in) Inflated Dimension NSD Ply Rating Inflation Pressure Load Capacity (kg)
OD CSW mm 32nd of inch bar psi 8 kmph 16 kmph
10 - 16.5 TL 8.25 775 275 17 21.5/32 8 4.1 60 1875 1480
10 5.2 72 2140 1690
12 - 16.5 TL 9.75 835 320 20 25/32 10 4.1 60 2425 1920
12 4.8 70 2655 2100

IPT – Greckster SKT05 (L5)

Technical Specifications
Size Type Rim (in) Inflated Dimension NSD Ply Rating Inflation Pressure Load capacity (kg)
OD CSW mm 32nd of inch bar psi 8 kmph speed 16 kmph speed
10 - 16.5 TL 8.25 802 262 37 47/32 14 6.3 90 2375 1875
12 - 16.5 TL 9.75 852 305 37 47/32 14 6.3 90 3120 2465

IPT – Greckster IND01

Technical Specifications
Size Type Rim (in) Inflated Dimension NSD Ply Rating Inflation Pressure Load capacity (kg)
OD CSW mm 32nd of inch bar psi 8 kmph speed 16 kmph speed
10 - 16.5 TL 8.25 796 265 33 41.5/32 10 5.2 73 2140 1690
12 - 16.5 TL 9.75 865 320 33.5 42/32 12 4.8 70 2655 2100
