Fitment Press
Emerald custom built fitment presses and fixtures offer easy, safe, and secure fitment solutions
Solid tyre fitment press
Easy, safe and secure
Complete set of fitment fixtures
Includes a set of Taper Cone, Pressing Cage & Base Plate for every ID profile in Solids & Press-ons
Compatibility
Fits all popular sizes in both Solid Resilient and Press-on tyres
Various capacities
Available in 80/100/120/200 Tons
Fitment fixtures for Solid Resilients
Base Plate

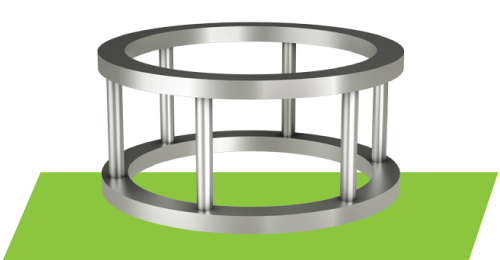

Pressing Cage
Taper Cone
Technical Specifications
| Parameters | 120T Fitment Press | 80T Fitment Press |
|---|---|---|
| Construction | Fabricated H frame | Fabricated H frame |
| Cylinder | Ø250 mm x Ø150 mm x 520 mm | Ø220 mm x Ø150 mm x 520 mm |
| No. of cylinders | 1 | 1 |
| Stroke | 400 mm | 400 mm |
| Day light gap | 820 mm | 820 mm |
| Over all width | 1650 mm | 1650 mm |
| Table size | Ø950 mm | Ø950 mm |
| Moving plate | Ø950 mm | Ø950 mm |
| Motor | 3 Phase, 7.5 HP, 415 v AC, 50 Hz | 3 Phase, 5.0 HP, 415 v AC, 50 Hz |
| Load @ Max. Pr. | 222 T | 150 T |
| Safety | Fixed fencing at the back & Door type fencing at the front | Fixed fencing at the back & Door type fencing at the front |
